RUI’AN / PRECISION PINS & SHAPED CONTACTSPrecision pins & shaped contacts
Series overview

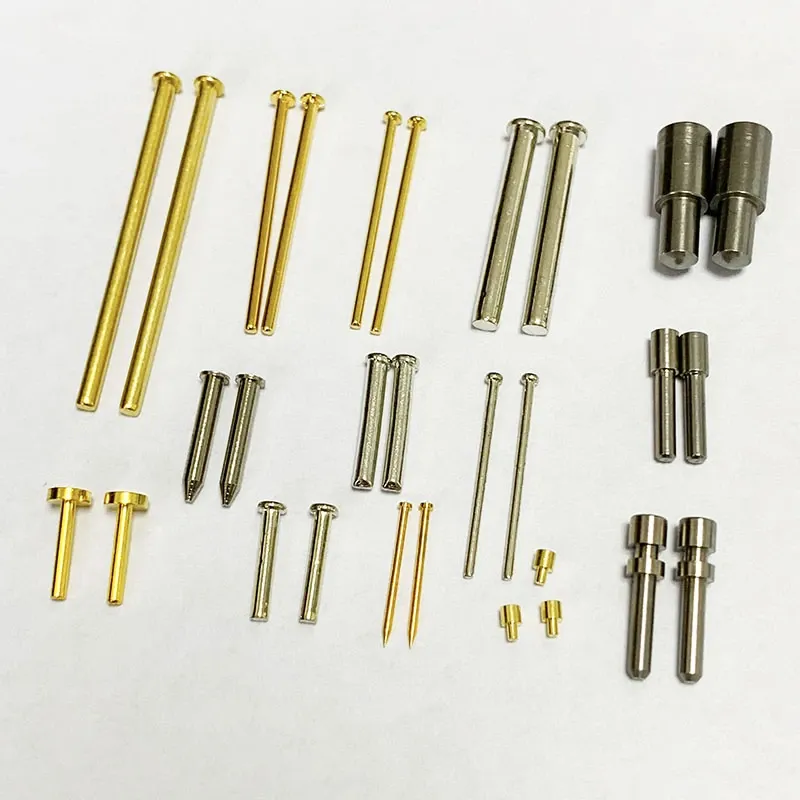

T-shaped copper pin series
Select a configuration from the product photos and send your drawing, dimensions and quantity for a quotation.
Request a quotationInclude your drawing and quantity for a product-specific quotation.
Product details
- Configuration
- T-shaped copper pin series
- Dimensions & tolerances
- Confirmed against your drawing
- Material & finish
- Confirmed for the selected part
- Final specification
- Drawing and sample approval before production
APPLICATIONS
Applications
- Electronic assemblies
- PCB connections
- Custom connector designs
START A QUOTATION
Request a custom part.
Share a dimensioned drawing, material, finish, required quantity and any critical features. For connector contacts, include the mating interface and electrical requirements.
Samples typically take 7–10 days and production 10–15 days, subject to the final specification and order.
EXPLORE THE RANGE
Configurations & dimensions.
Compare the configurations below, then send your selected part and requirements for a quotation. Select a product image to enlarge it.
Check the units shown on each drawing. Our team will confirm the dimensions, material and finish for your selected part before production.
