12 mm Torsion spring sockets · P15-13

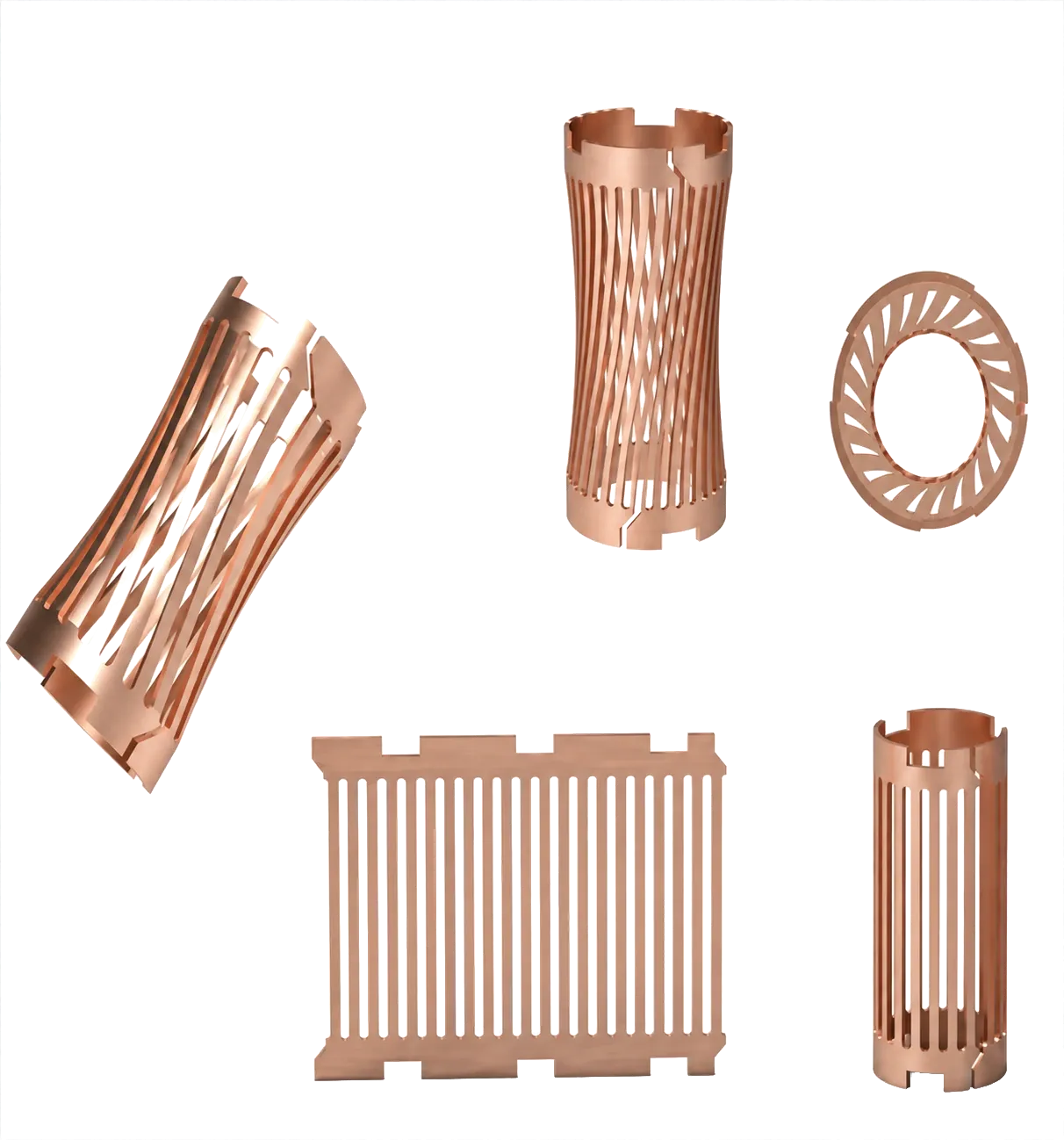

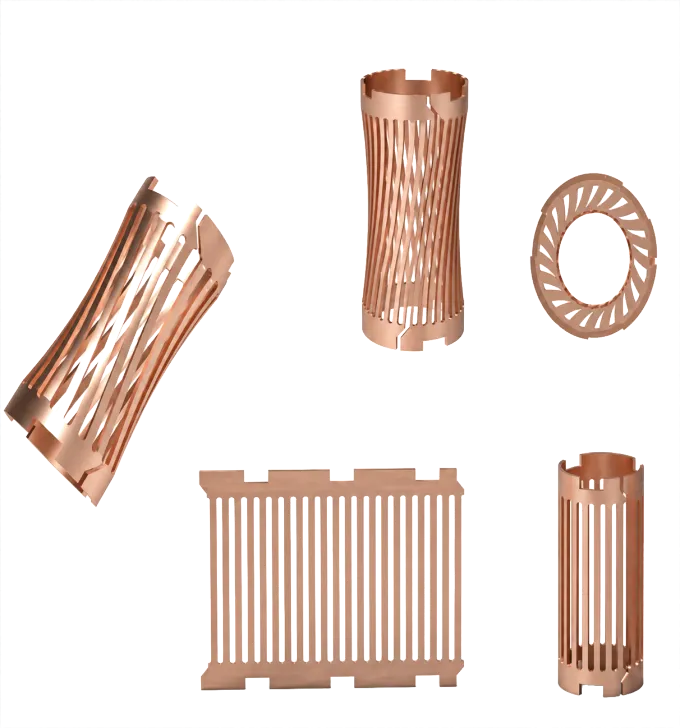

Spring insert dimensions from the catalog specification table.

Request a quotation

Include your drawing and quantity for a product-specific quotation.

Product details

Product families

Catalog reference: P15-13
Mating pin diameter: 12 mm
Outer diameter: 13.45 mm
Length: 25 mm
Material thickness: 0.5 mm

Configurations & dimensions.

Catalog reference	Mating pin diameter	Outer diameter	Length	Material thickness
P15-01	1 mm	1.5 mm	6 mm	0.1 mm
P15-02	1.5 mm	2.05 mm	6 mm	0.1 mm
P15-03	2.8 mm	3.4 mm	10 mm	0.2 mm
P15-04	3 mm	3.8 mm	10 mm	0.2 mm
P15-05	3.6 mm	4.4 mm	10 mm	0.2 mm
P15-06	5.7 mm	6.7 mm	12.5 mm	0.3 mm
P15-07	6 mm	7 mm	20 mm	0.3 mm
P15-08	6 mm	7 mm	14 mm	0.3 mm
P15-09	8 mm	9.23 mm	20 mm	0.4 mm
P15-10	8 mm	9.23 mm	16 mm	0.4 mm
P15-11	10 mm	11.2 mm	18 mm	0.4 mm
P15-12	10.3 mm	11.7 mm	18 mm	0.4 mm
P15-13	12 mm	13.45 mm	25 mm	0.5 mm

APPLICATIONS

Applications

Connector assemblies
Power contacts
Custom electrical connections

START A QUOTATION

Request a custom part.

Share a dimensioned drawing, material, finish, required quantity and any critical features. For connector contacts, include the mating interface and electrical requirements.

Samples typically take 7–10 days and production 10–15 days, subject to the final specification and order.
